Model NO.: SRL
-
Working: High Speed Mixer
-
Application: Powder
-
Application Area: Rubber,Food-Stuff,Daily Chemical Industry
-
Additional Capabilities: Drying
-
Condition: New
-
Working Way: Hot Mixing and Cooling Mixing
-
Heating Method: Self-Friction and Electricy Steam
-
Discharge Method: Pneumatics or by Hand Works
-
Specification: CE, SGS, ISO
-
HS Code:
-
Mixer Type: Agitator
-
Stirring Type: Spiral
-
Certification: CE, ISO
-
Layout Type: Verticle
-
Operating type: Cycle Operating
-
Series: SRL
-
Usage: for Mixing Plastics,Rubbers,Food-Stuff etc
-
Cooling Way: Water Cooling
-
Brands of Important Parts: Holip,Siemens,Chnt etc
-
Origin: Jiangsu, China
SRLSeries powder mixer for plastic extruder units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
| Main Technical Parameter |
| Model |
SRL-Z100/200 |
SRL-Z200/500 |
SRL-Z300/600 |
SRL-Z500/1250 |
SRL-Z800/1600 |
| Total volume (L) |
100/200 |
200/500 |
300/600 |
500/1250 |
800/1600 |
| Effective capacity (L) |
65/130 |
150/320 |
225/380 |
330/750 |
600/1050 |
| Stirring speed (rpm) |
650/1300/200 |
475/950/130 |
475/950/100 |
430/860/70 |
370/740/50 |
| MIxing time (min.) |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
| Motor power (kw) |
14/22/7.5 |
30/42/11 |
40/55/11 |
55/75/15 |
83/110/22 |
| Ovarall dimension (mm) |
1950*1600*1800 |
4580*2240*2470 |
4800*2640*2480 |
5600&3000*3100 |
5170*3200*4480 |
| Weight (kg) |
2200 |
3400 |
3600 |
6500 |
9800 |
| Output (kg/h) |
165 |
330 |
495 |
825 |
1320 |
|

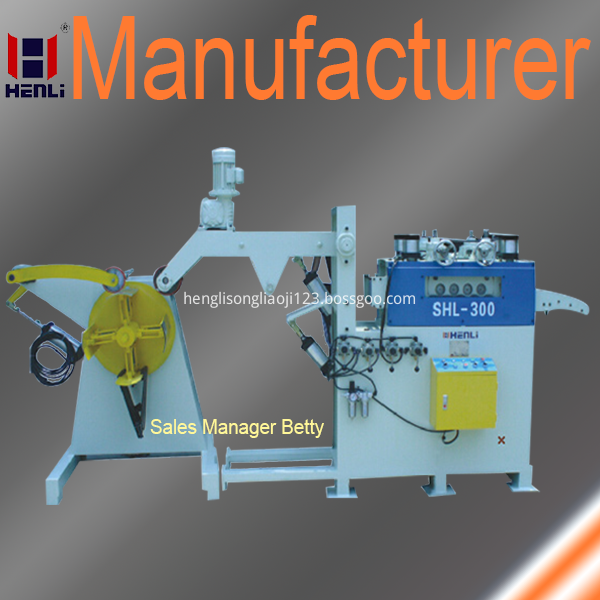

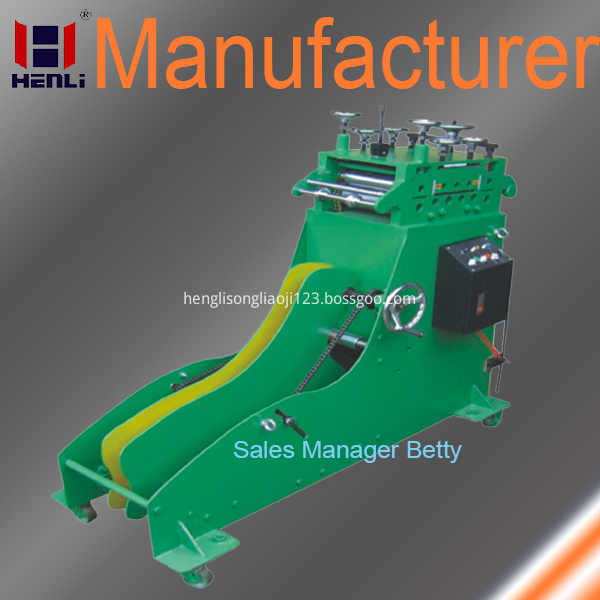

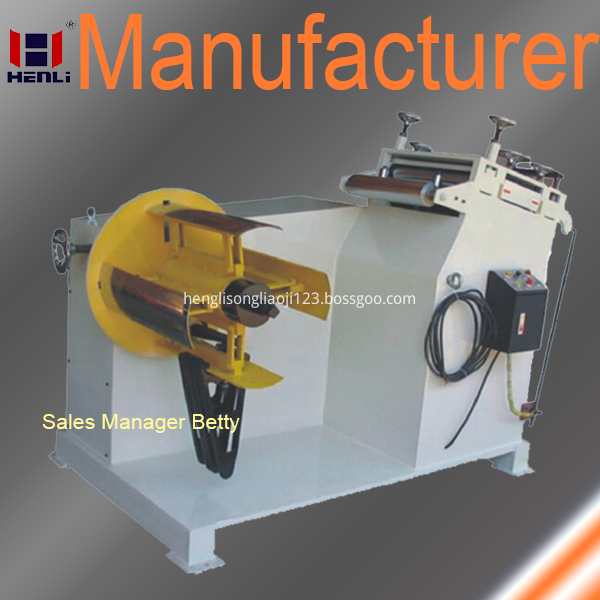

2 In 1 Straightener
2 in 1 straightener is consisting of 2 in 1 Automatic Straightener Machine, leveler&manual reel, 2 in 1 straightener and Uncoiler, decoiler machine and uncoiler straightener.2 in 1 straightener can cooperate with other feeders to maximize productivity, which adopt Japanese bearings-highest precision and long service life. 2 in 1 straightener can equipped with inverter control. The series can be modified to meet your special requirements.
Dongguan HenLi Machinery Equipment Co.,LTD. that spirit of enterprise "Honesty oriented,factualism and innovation", sticking to the tenet of "seeking survival with quality,pursuing development with efficiency,expanding market with credibility". We guarantee to supply high quality products with reasonable prices and satisfactory service.we warmly welcome interested customers to contact us for further cooperation based on mutual benefits.
2 In 1 Straightener
2 In 1 Straightener,2 In 1 Automatic Straightener,Straightener 2 In 1 Machine,2 In 1 Coil Uncoiler Straightener
